EXOROCKT Design Software by Aitken Werks

Choose your fuel, oxidizer, payload, and target apogee. EXOROCKET calculates the optimal rocket configuration and returns a CAD-ready design.

Login to EXOROCKET

EXOROCKET iterates through hundreds of rocket design configurations to find the mathematically optimal vehicle for your target apogee, payload, propellant choice, and mission requirements.

The result is a launch vehicle designed for maximum efficiency from the start, reducing the need for constant redesign and resizing throughout development. This saves R&D time and helps produce a rocket that is smaller, easier to build, easier to transport, and more cost-effective.

EXOROCKET optimizes:

  • Engine design
  • Thrust level
  • Fuel, oxidizer, and pressurant quantities
  • Tank sizing
  • Fin sizing
  • Overall vehicle geometry

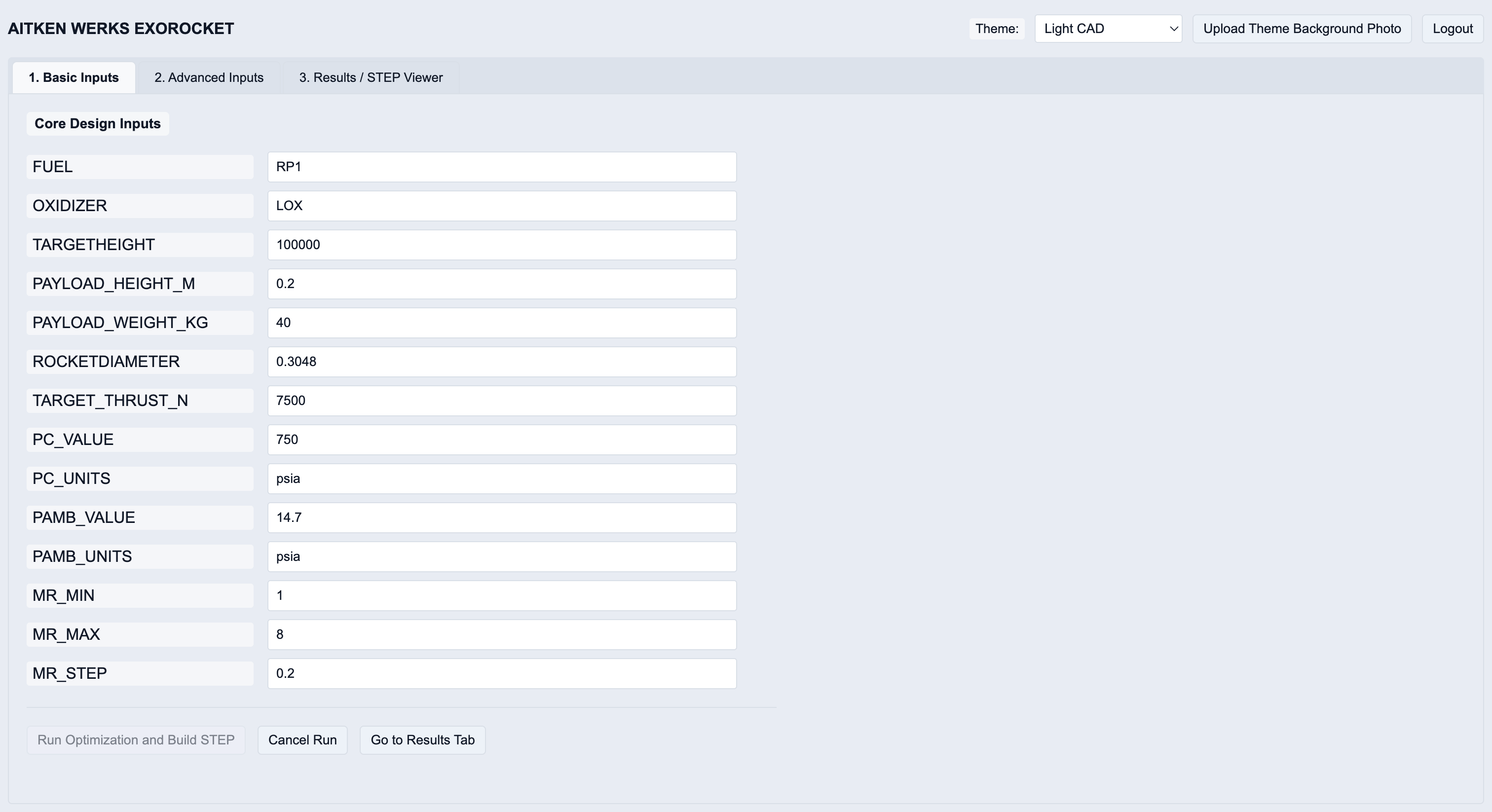

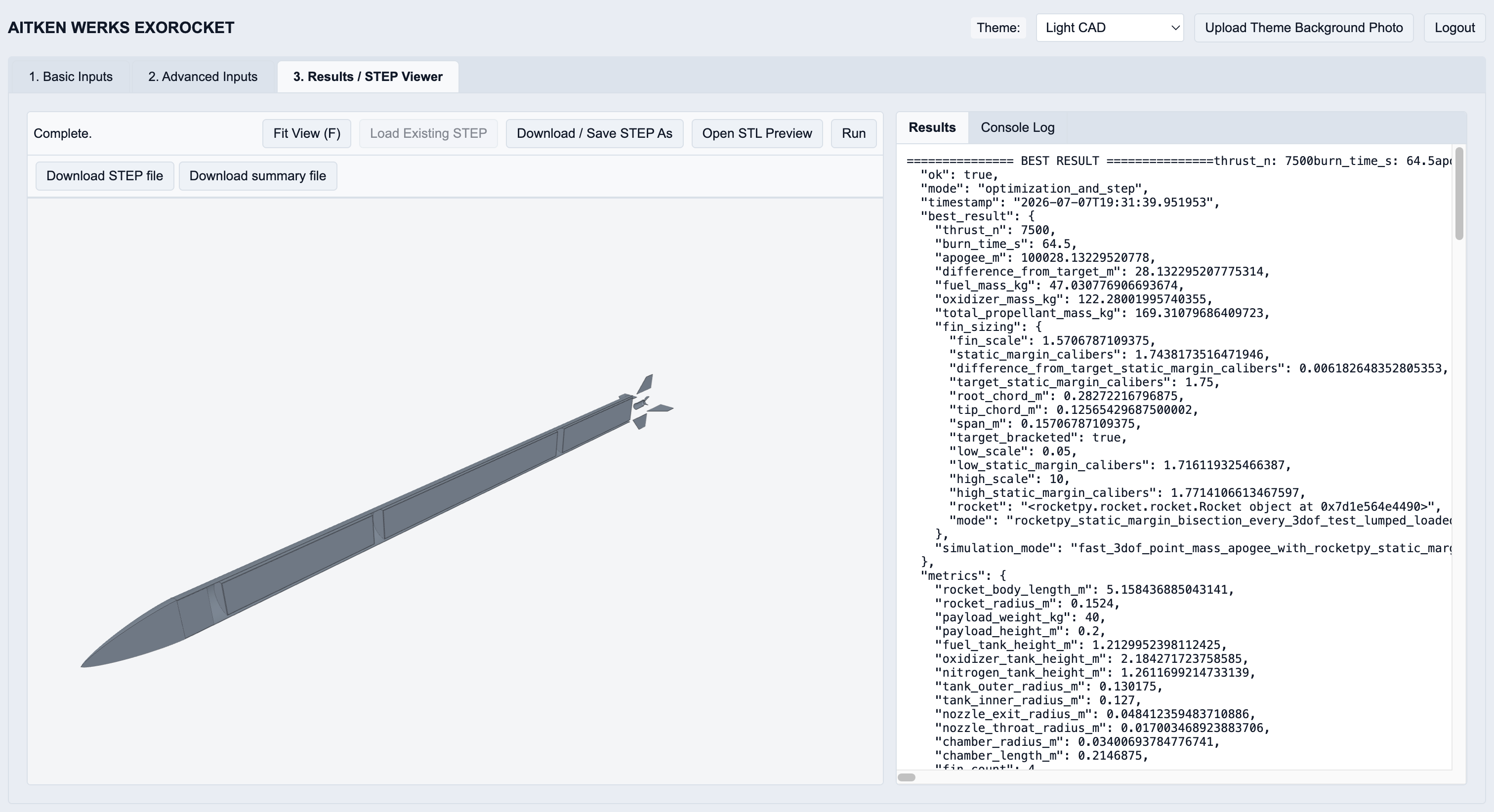

The Software at a Glance

Plans

Single Simulation

Single Simulation

Student

Student

Enterprise

Enterprise

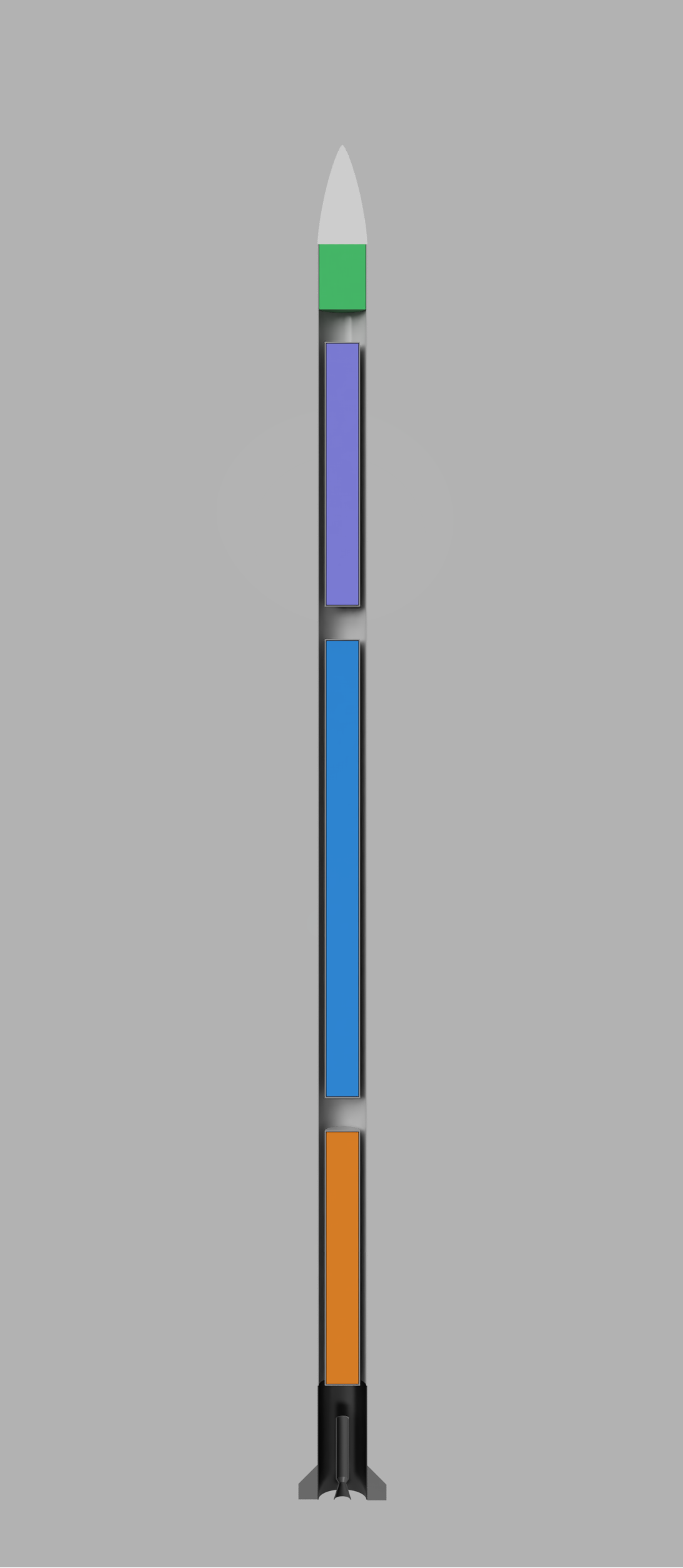

Outputs Generated from Exorocket Software

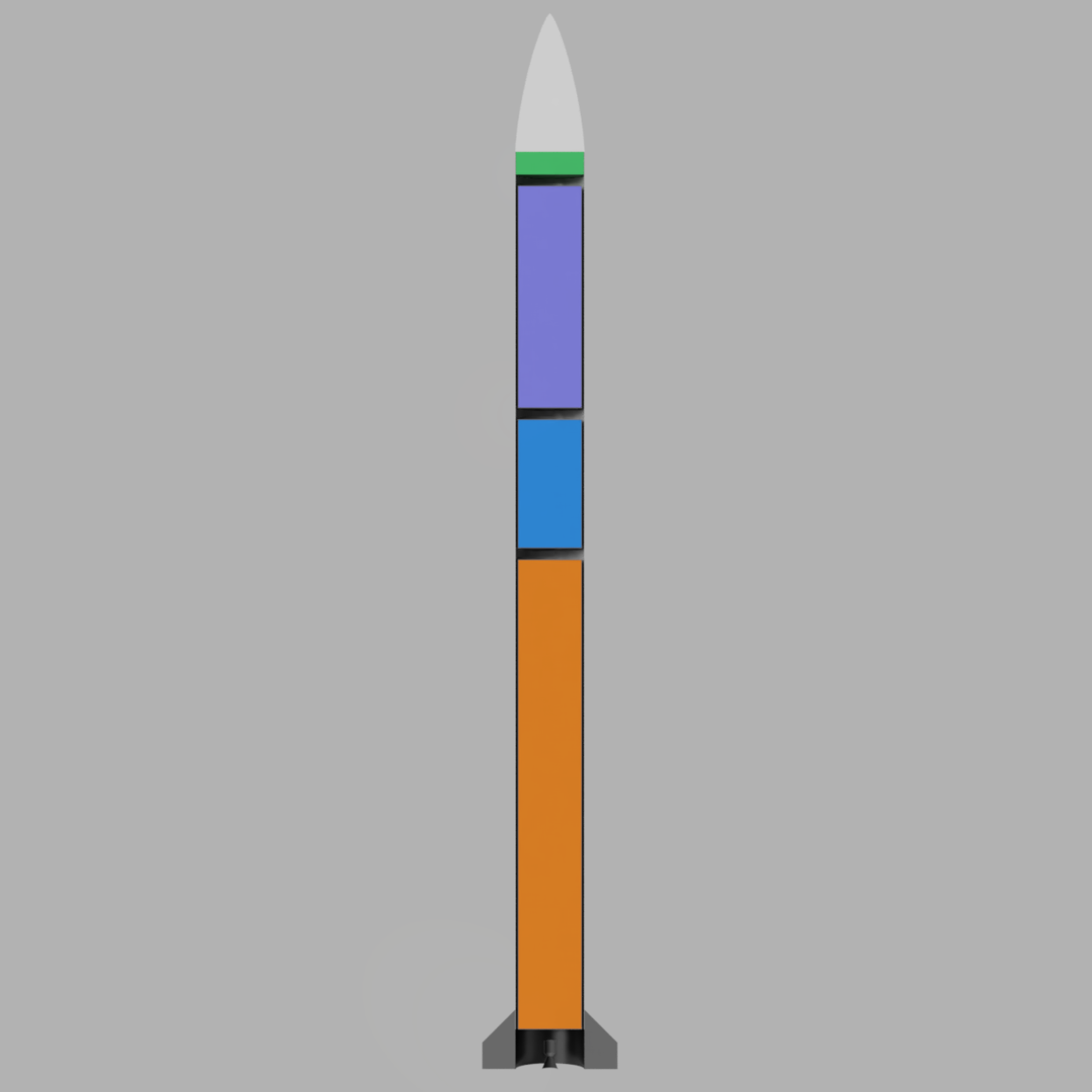

45, 000 Foot Collegiate Rocket

Inputs:

Thrust: 1875 N

Apogee: 13716 m (45,000 feet)

Best apogee AGL: 13712.417 m

RP-1 fuel used: 4.84 kg

Liquid Oxygen used: 12.58 kg

Karman Line Hydrogen Rocket

Thrust: 19000 N

Apogee: 100000 m

Liquid Hydrogen Fuel used: 76.89 kg

Liquid Oxygen Oxidizer used: 307.57 kg

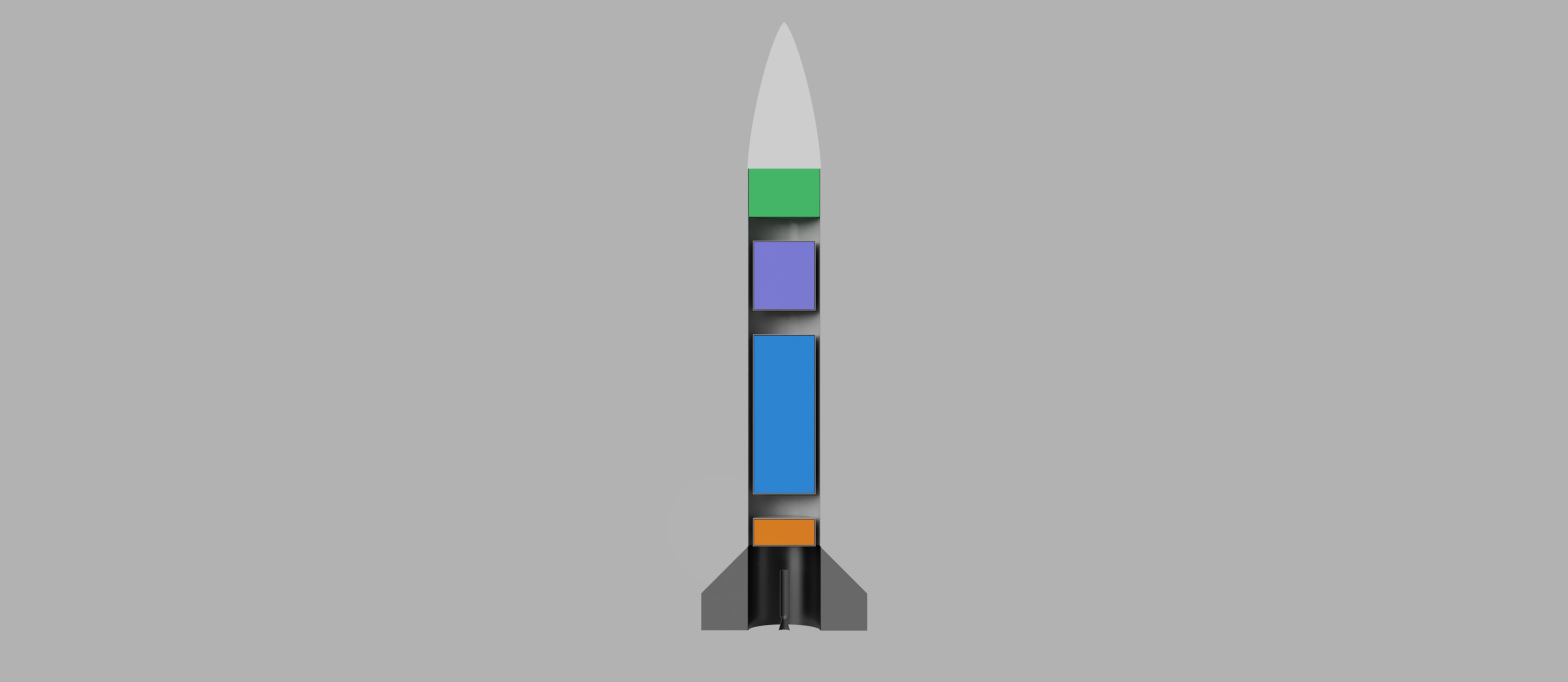

Ultra Wide Alternative Rocket

Thrust 1500 N

Apogee: 10000 m

Ethanol Fuel used: 4.59 kg

Liquid Nitrous Oxide Oxidizer used: 24.82 kg
